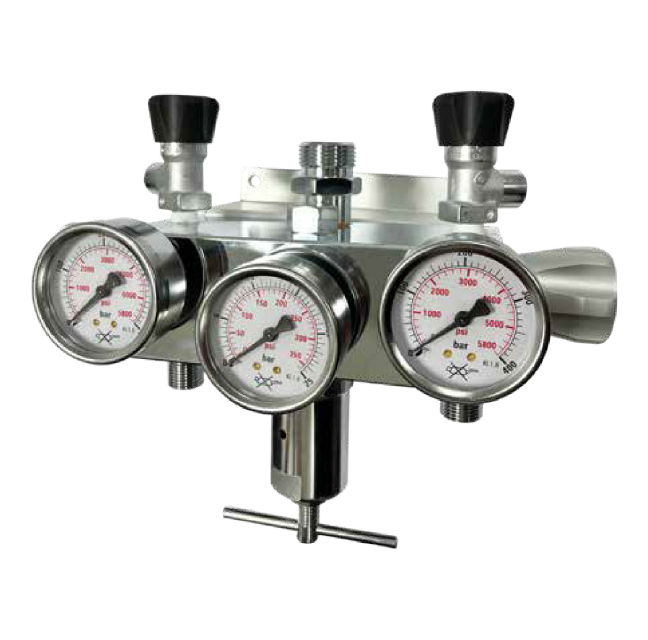

Decompressor unit - 117-118-119-120
SQD 117-118-119-120 - DECOMPRESSION UNITS
Product
Single-stage, decompression unit for centralized, high-flow systems. Provided with two cylinder connections according to standard 2-UNI11144 or 1H-11144, each one completed with on/off valve and checkvalve. Using highflow rates of CO2 and gas mixtures, preheaters up-stream the unit, are recommended.
Technical Specifications
- Code:117-118-119-120
- Type:Decompressor unit
- Series:SQD
- Material:
- Brass
- Industrial sector:
- Welding / Cutting / Distribution
- Food
- Fluid or gas:
- Technical Gases
- Type of connection:
- UNI/ISO/DIN/CGA Cylinder
- Dimensions (in inches):
- 1/2"
- Maximum pressure:
- 60-500 Bar
- Certifications:
- MOCA
- PED
